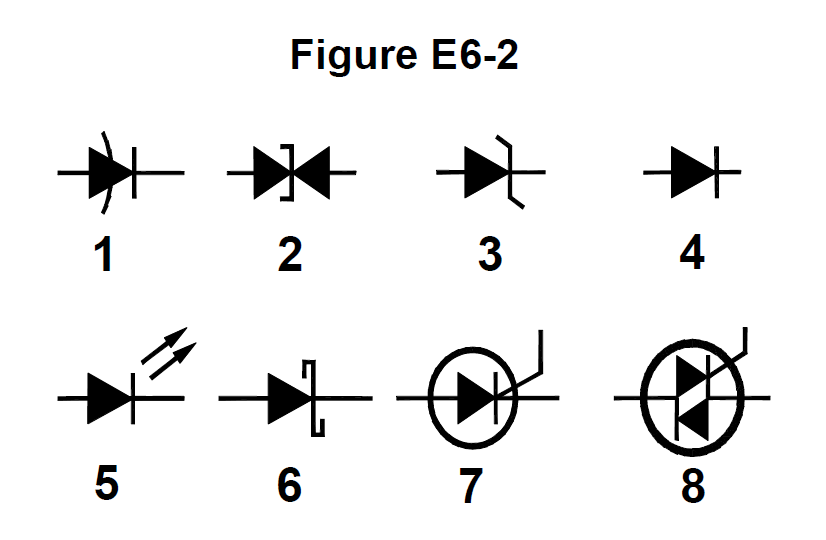

In Figure E6-2, which is the schematic symbol for a Schottky diode?

Q: In Figure E6-2, which is the schematic symbol for a Schottky diode?

The correct answer is B: 6. The correct answer is B: 6. In Figure E6-2, which is the schematic symbol for a Schottky diode is 6. Symbol 6 represents a Schottky diode. For amateur radio operators, this is important for component knowledge. Understanding this helps when reading schematics.

Previous Next

Deep Dive: E6B10

The correct answer is B: 6. In Figure E6-2, which is the schematic symbol for a Schottky diode is 6. Symbol 6 represents a Schottky diode. For amateur radio operators, this is important for component knowledge. Understanding this helps when reading schematics.

Why Other Answers Are Wrong

Option A (1): Incorrect. Symbol 1 isn't Schottky diode - symbol 6 is. Symbol 1 is wrong. Option C (2): Incorrect. Symbol 2 isn't Schottky diode - symbol 6 is. Symbol 2 is wrong. Option D (3): Incorrect. Symbol 3 isn't Schottky diode - symbol 6 is. Symbol 3 is wrong.

Exam Tip

Schottky diode symbol in Figure E6-2 = 6. Think 'S'chottky = '6'. Symbol 6 represents a Schottky diode. Not 1, not 2, not 3 - just 6.

Memory Aid

Schottky diode symbol in Figure E6-2 = 6. Think 'S'chottky = '6'. Symbol 6 represents a Schottky diode. Important for component knowledge.

Real-World Example

In Figure E6-2: Symbol 6 is the schematic symbol for a Schottky diode. This symbol shows the characteristic Schottky diode representation. This is the symbol - 6 for Schottky diode.
